This is an ideal solution for the hospitals where there is space constraint, specially the height and for minor OTs. In such situation hospitals depend upon split ACs for the cooling. But split ACs recirculates the same air again and again and has no provision of filtration. To counter this we have developed an unique system that gives same air quality as conventional AHU system as per NABH standerd i.e. Class 100 air and with 20 – 25% fresh air content. This can be used in both OT as well as ICU.

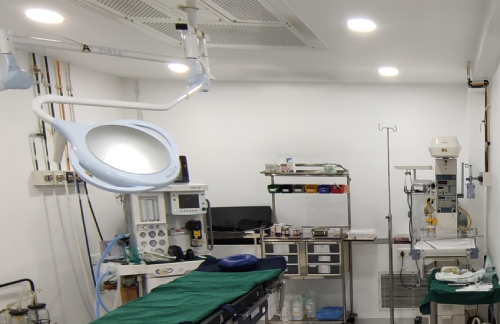

OT Unit
Comes with 1 suction and 2 delivery points on one of the walls of the OT.
Air delivery from plenum of 4'x6' through ceiling can also be possible with extended ducts.
System comes with UV chember with 99.99% sterility.
2 prefilter and 1 fine filter.
HEPA filters of H14 grade at the delivery chamber with dust spot efficiency of 99.97% down to 0.3 micron.

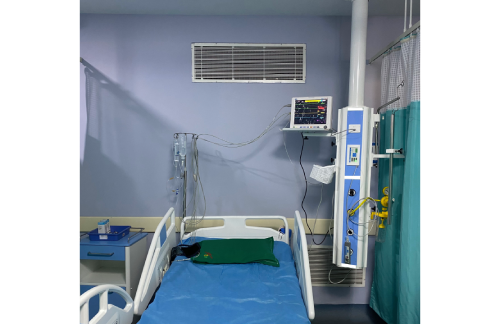

ICU Unit (3 Bed Unit)
The main purpose of such system is to avoid patient to patient cross infection.
The system has 1 delivery and 1 suction point for each bed.
Air delivery can be given through the ceiling as well with extended ducts.
System comes with UV chember with 99.99% sterility.
2 prefilter and 1 fine filter.
HEPA filters of H14 grade at the delivery chamber with dust spot efficiency of 99.97% down to 0.3 micron.
